Holographic Invisible LED Screen
What is a holographic screen?
A holographic screen is a display technology that creates three-dimensional images or animations that appear to hover in the air. Different from traditional flat display technology, holographicscreens can present a realistic three-dimensional effect, givingpeople the illusion of immersion and touch.
Dimensions: 250X1000 or 250X1200 mm
Pixel Pitch: 3.91-3.91mm, 6.25-6.25mm,10-10mm

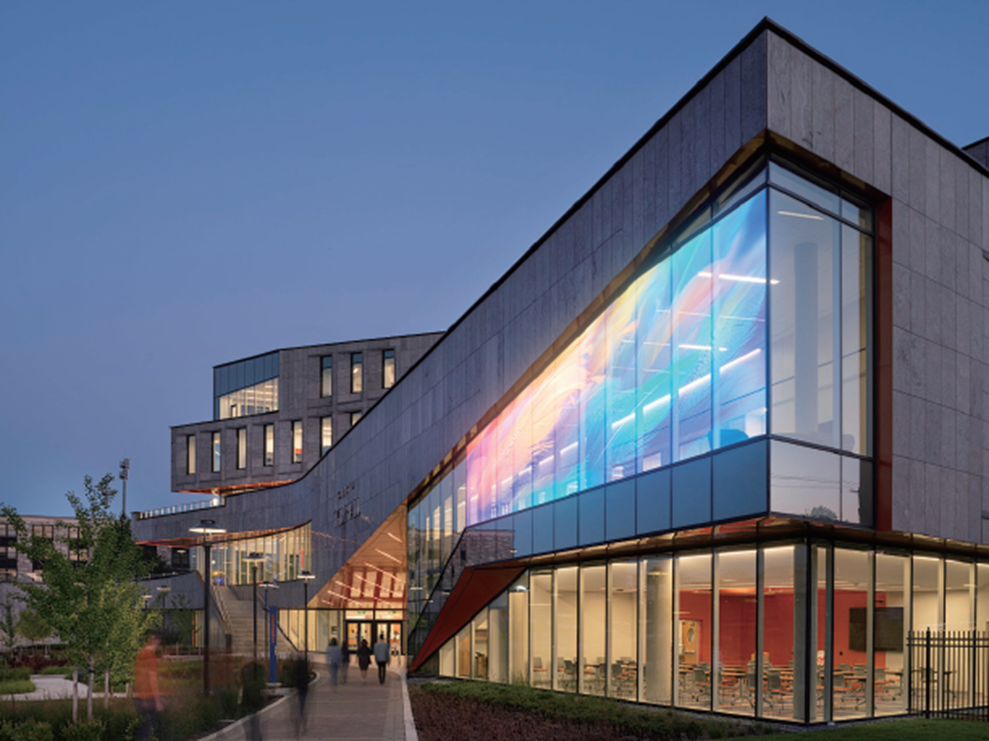

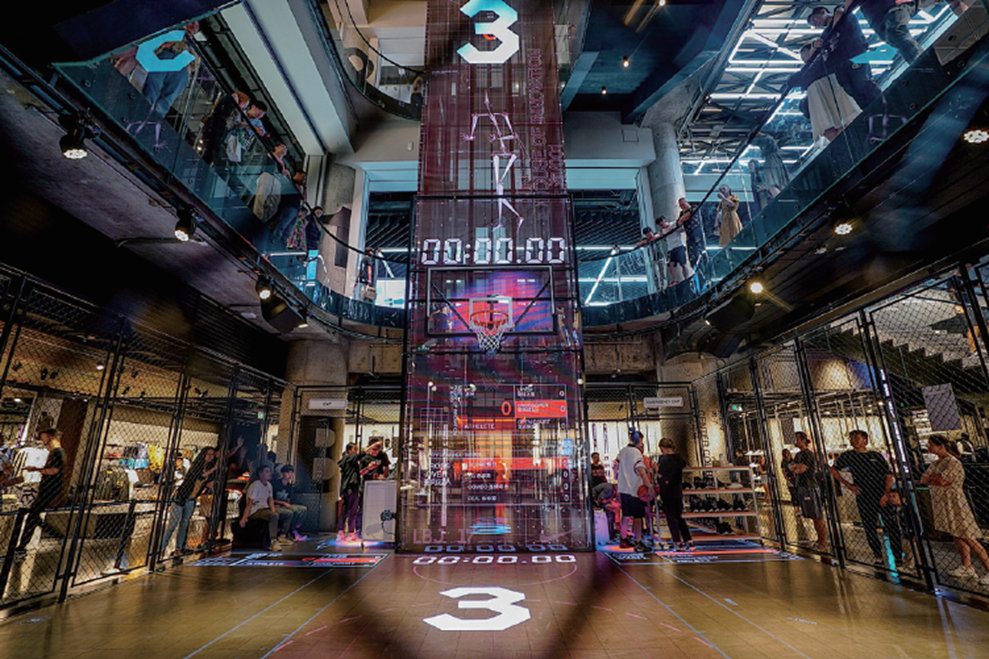

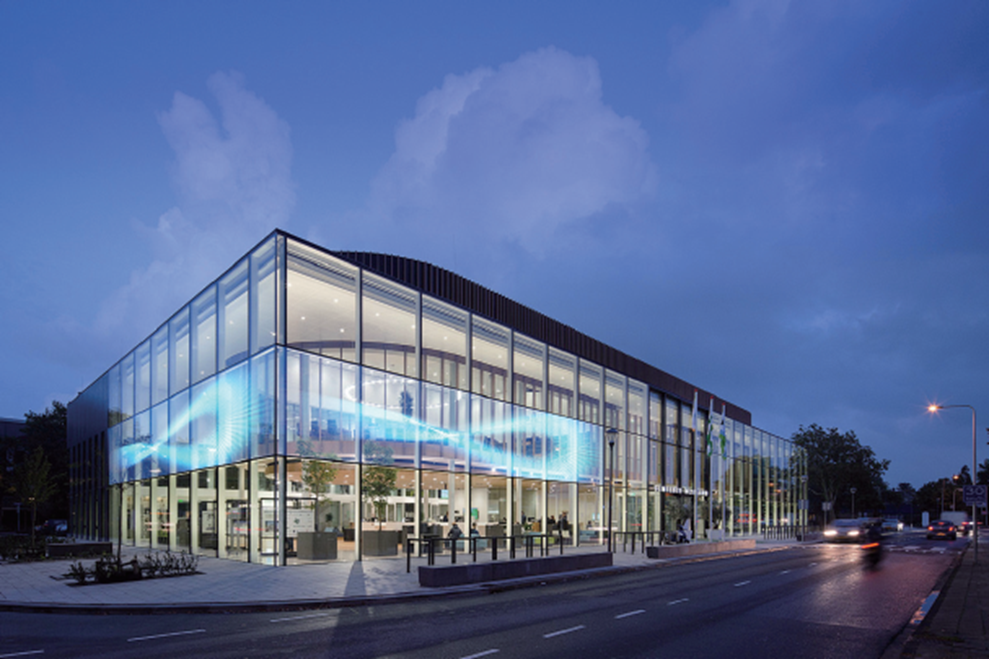

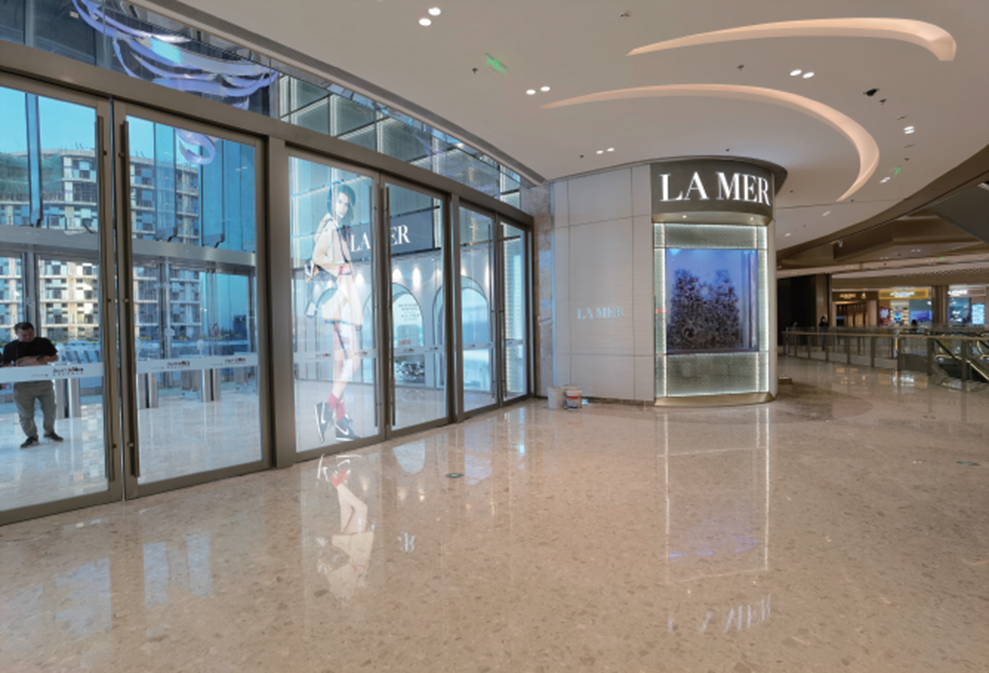

Applications: Banks, shopping malls, theaters, commercial streets, chain stores, hotels, municipal public buildings, landmark buildings, office buildings, science and technology museums, transportation hubs, etc.
|
Model |
P2.6-5.2 |
P3.9-7.8 |
P7.8-7.8 |
P10.4-10.4 |
|
Pixel Pitch |
V:2.604mm |
V:3.91mm |
V:7.81mm |
V:10.4mm |
|
Pixel configuration |
SMD1415 |
SMD2020/1921 |
SMD2020/1921 |
SMD2020/3510 |
|
Pixel density(pixel/㎡) |
73728 dots/㎡ |
32768 dots/㎡ |
16384 dots/㎡ |
9216 dots/㎡ |
|
Cabinet size |
1000x1000mm |
1000x1000mm |
1000x1000mm |
1000x1000mm |
|
Cabinet Resolution |
384L X 192H |
256L X 128H |
128L X 128H |
96L X 96H |
|
Avg power consumption(w/㎡) |
200W |
200W |
200W |
200W |
|
Max power consumption(w/㎡) |
600W |
600W |
600W |
600W |
|
Cabinet material |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
|
Cabinet Weight |
14kg |
14kg |
14kg |
14kg |
|
Viewing angle |
160° /160° |
160° /160° |
160° /160° |
160° /160° |
|
Viewing distance |
2-80m |
3-100m |
7-120m |
10-300m |
|
Refresh Rate |
1920Hz-3840Hz |
1920Hz-3840Hz |
1920Hz-3840Hz |
1920Hz-3840Hz |
|
Color processing |
14bit-16bit |
14bit-16bit |
14bit-16bit |
14bit-16bit |
|
Working voltage |
AC100-240V±10％， |
AC100-240V±10％， |
AC100-240V±10％， |
AC100-240V±10％， |
|
Brightness |
≥3000cd |
1000-5000cd |
1000-5000cd |
1000-5000cd |
|
Lifetime |
≥100,000 hours |
≥100,000 hours |
≥100,000 hours |
≥100,000 hours |
|
Working temperature |
﹣20℃～60℃ |
﹣20℃～60℃ |
﹣20℃～60℃ |
﹣20℃～60℃ |
|
Working humidity |
60%～90%RH |
60%～90%RH |
60%～90%RH |
60%～90%RH |
|
Control system |
Novastar |
Novastar |
Novastar |
Novastar |
You’d better buy all modules at a time for a led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
