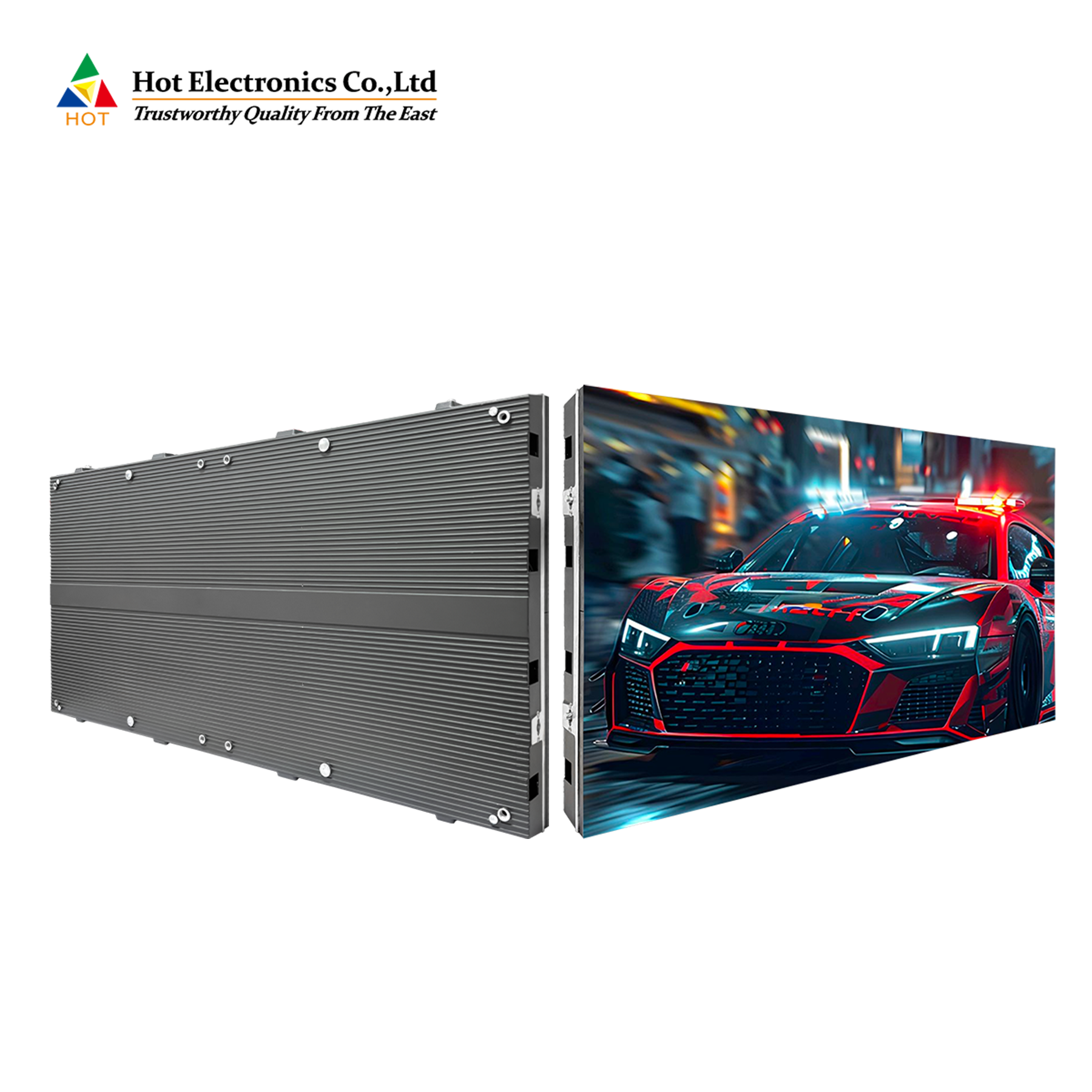

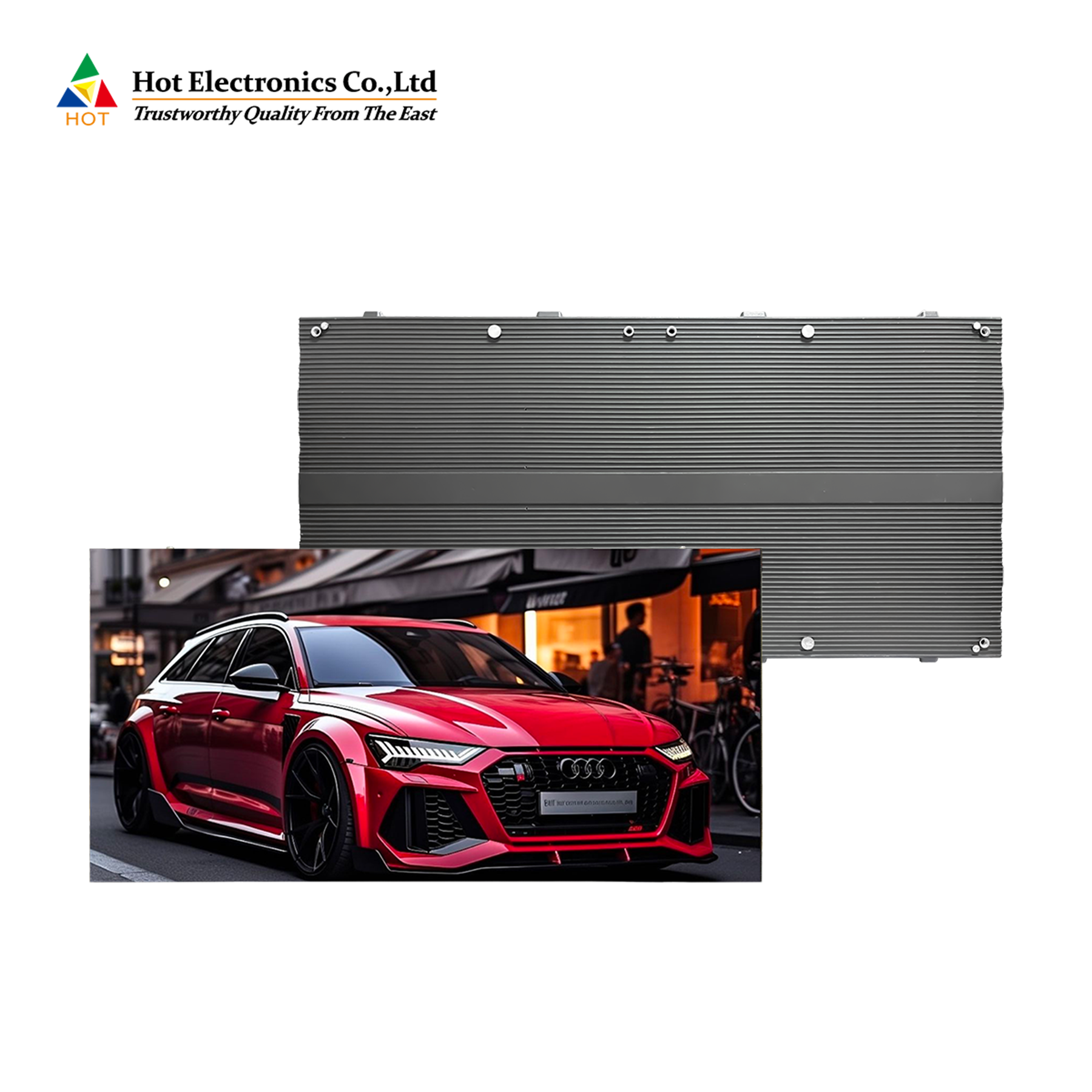

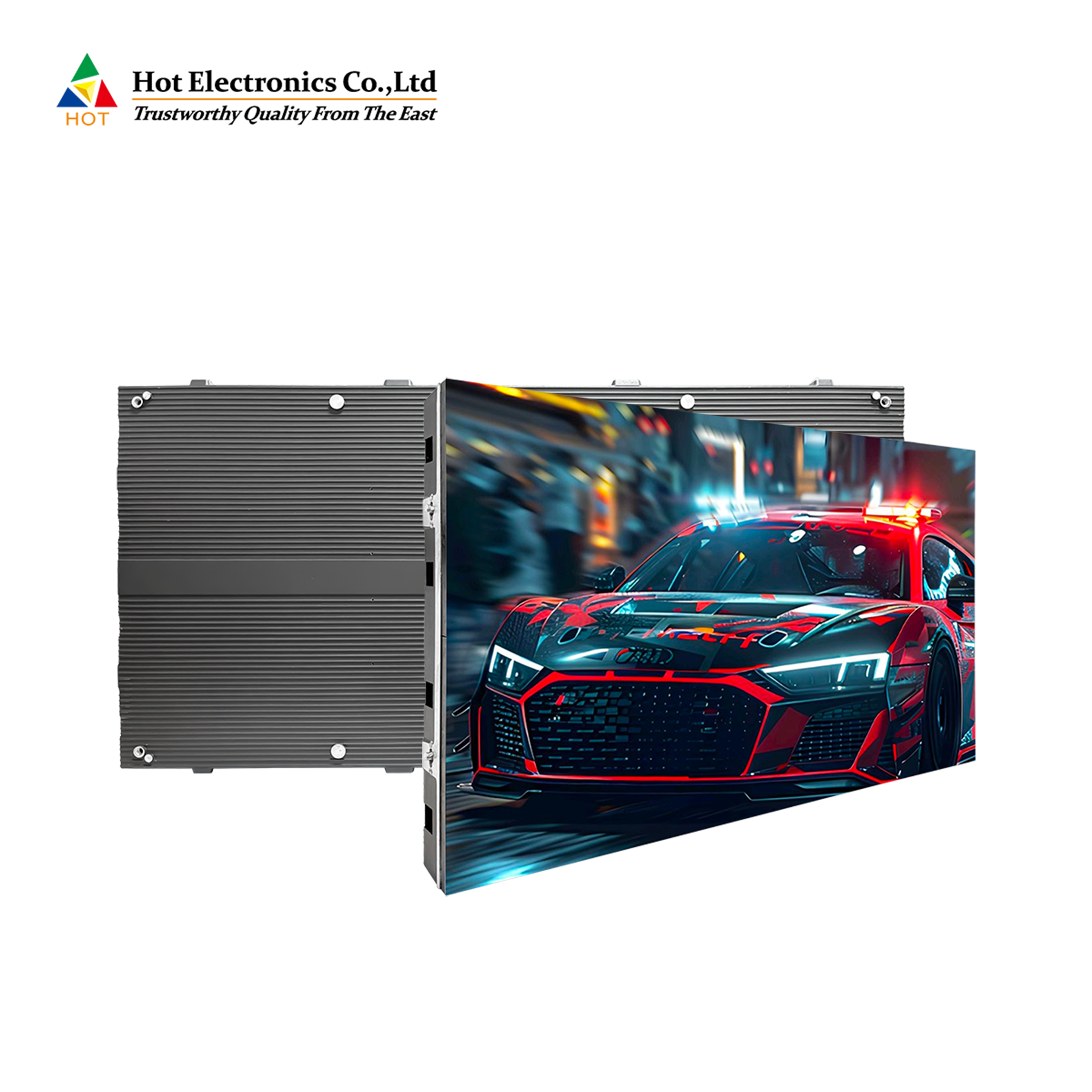

P2.6 with 500x1000mm Aluminum Cabinet Indoor LED Video Wall

Short Description:

● 4:3 Ratio Cabinet with 500*1000mm dimension

● The LED modules can be removed by tools on front side only 5 seconds

● Die-casting Aluminum Cabinet Quality, but price same as iron cabinet

● Hign refresh rate ,High contrast rate, and 256-grade automatical brightness control

Send email to us

Product Detail

Product Tags

Details

Dimensions: 500*1000mm

Pixel Pitch: 2.6mm

Applications: TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, shopping mall, and star hotels etc.

P2.6 with 500x1000mm Aluminum Cabinet Indoor LED Video Wall Specification

Item	Specification
Product Model	P2.6
Pixel Configuration	1R1G1B
LED Type	SMD1515
Pixel Pitch	2.604mm
Pixel Density	147,456/m²
Screen Brightness	>700cd/m²
Driving Method	Constant Current Drive
Scanning Mode	1/32 Scan
Viewing Angle	Horizontal 120°, Vertical 120°
Viewing Distance	>3m
Module Resolution	96*96
Module Size	250mm*250mm
Module Material	Black PC Back Shell
Working Voltage	DC5V
Recommended Cabinet Size	500mm*500mm
Cabinet Color	Black (Recommended) or Other Colors
Lifespan	100,000 Hours
Maximum Power Consumption	600W/m²
Average Power Consumption	300W/m²
Input Signal	S-Video, Composite, RGB, DVI
Refresh Rate	3840Hz (System Dependent)
Display Color	10243
Gray Scale	16K Level
Brightness Adjustment	Manual or Automatic 100 Levels Adjustable
Transmission Method	Network Cable or Optical Fiber
Control System Resolution	Width 192 * Height 192 = 36864
Interface Type	HUB75

You’d better buy all modules at a time for a led screen, in this way, we can make sure that all of them are of the same batch.

For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.

So our modules can’t work together with your previous or later modules.

If you have some other special requirements, please contact our online sales.
