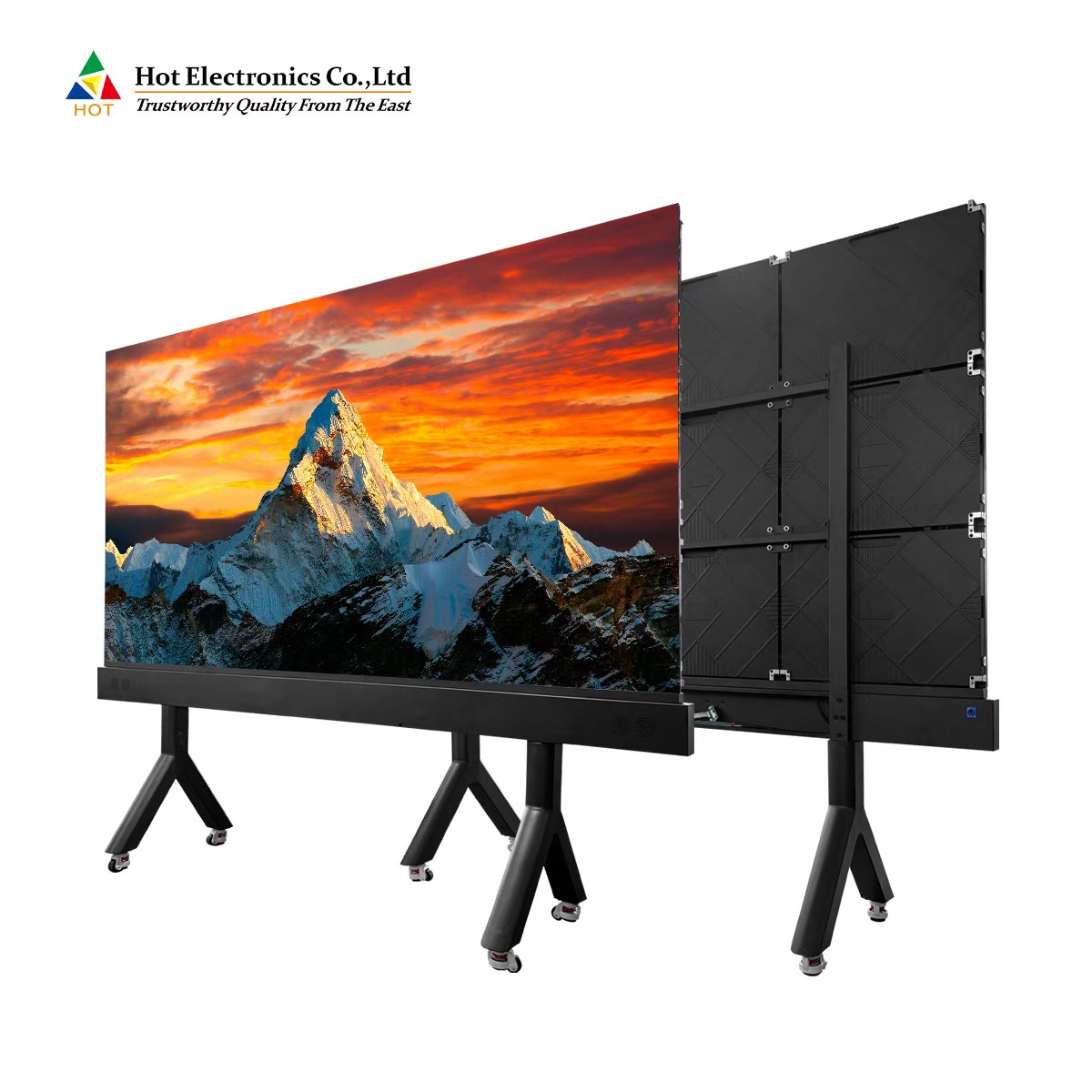

P0.9 COB All-in-one LED Display for Conference, Education & Commercial Applications
Pixel Pitch: 0.9 mm
Key Features:
Dual Chip-Driven Precision Unleashed
Powered by a dedicated ASIC chip and HiView imaging engine, this display achieves over 105% DCI-P3 cinema-grade color delivering breathtaking vibrancy. Its 1,600-nit peak brightness enhances contrast, making bright images vivid and revealing hidden details in dark scenes.
Smart Whiteboard
With the integrated smart whiteboard, collaborating and brainstorming become effortlessly efficient: erase the entire surface with a palm swipe; experience freehand sketches autocorrect into precise shapes; and instantly convert handwritten notes into digital formats with a single scan.
Eye-Comfort Optimization
Self-developed anti-glare LED coating reduces ambient light impact. Combined with Camera Mode’s random scanning overcoming sequential limits, it alleviates eye strain from extended use.
Effortless Transmission
This wireless screen-sharing solution enables instant quadsplit screen and supports reverse screen casting for seamless collaboration, with compatibility across Windows, Android, and mac OS systems.
Streamlined Deployment
Pre-installed at the factory, the all-in-one achieves operation-ready deployment with a two-person team completing installation in under 90 minutes. Its self-configuring system eliminates technical barriers, while front access for all service needs ensures zero downtime mission-critical operations.
Energy Efficient

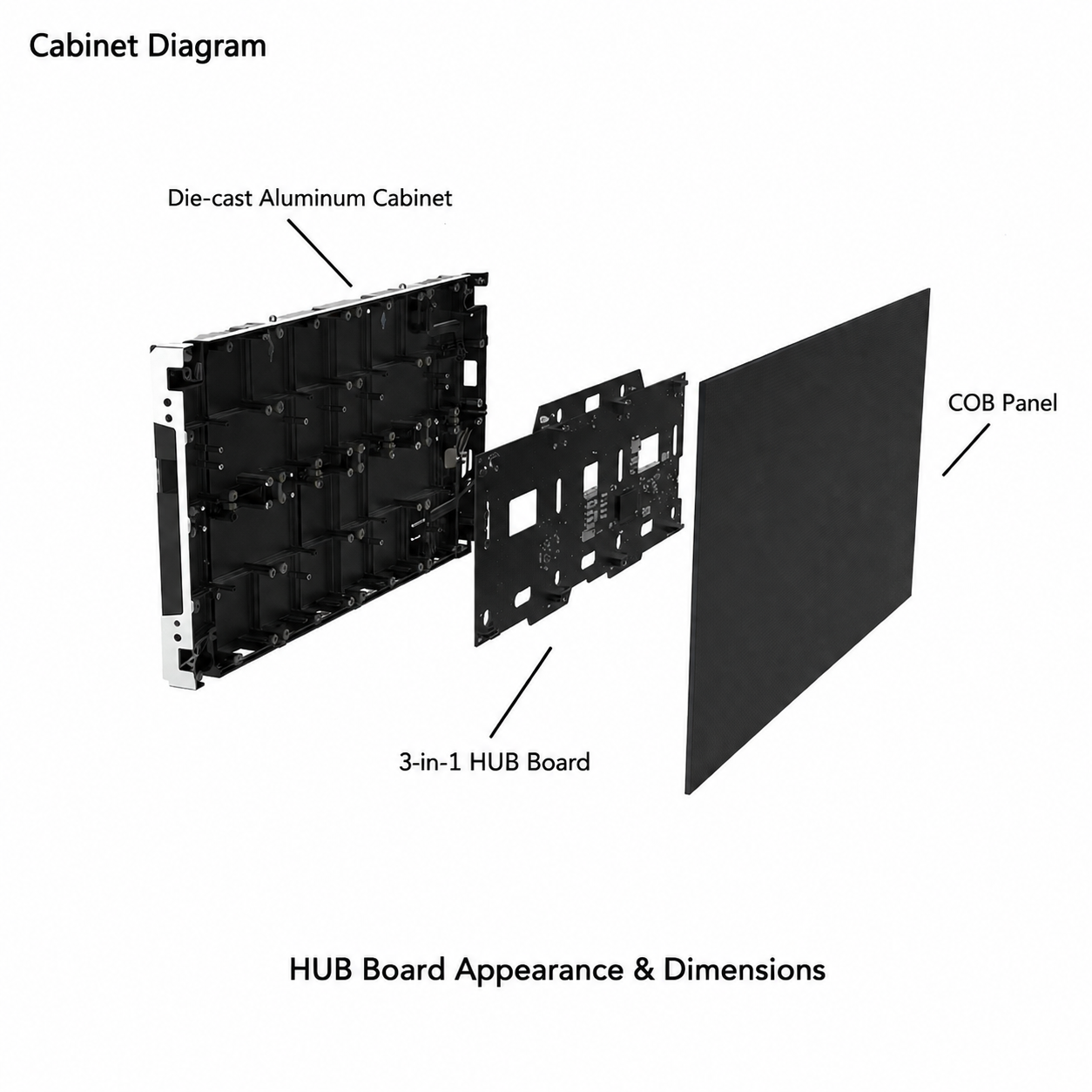

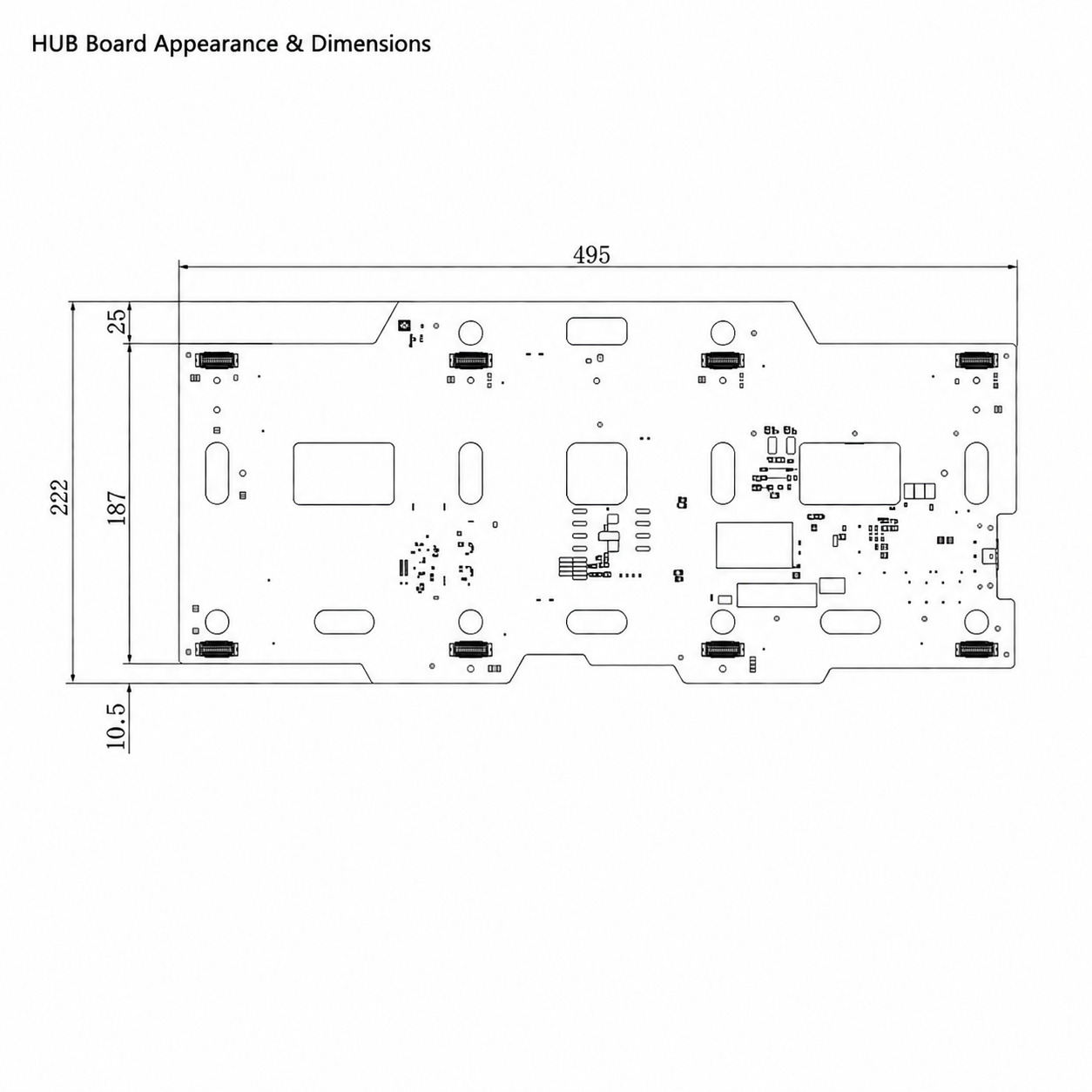

Efficient power supply and 3-in-1 HUB Board reduce energy consumption; optimized common cathode drivers and energysaving algorithms cut power by over 35% versus conventional COB, largely slashes operational costs.
| Pixel Pitch(mm) | 0.9mm | |
| Module Resolution (dot) |
160 × 180 | |
| Module Size | 150mm*168.75mm | |
| Module Weight (g) | ≤144.5 | |

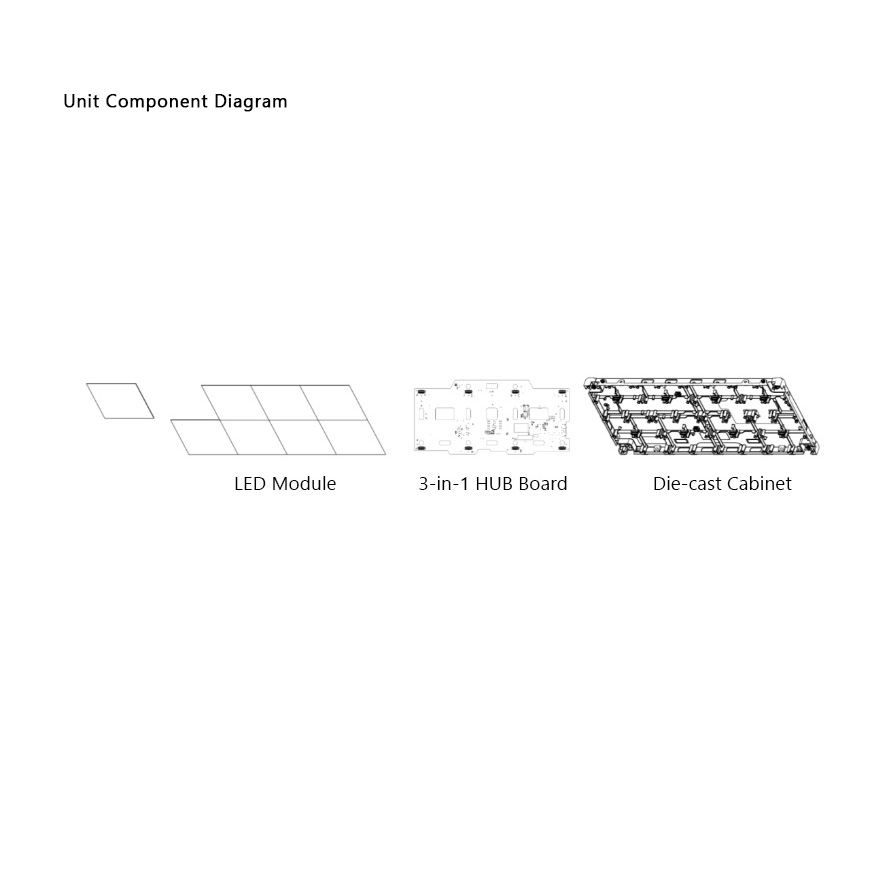

| Cabinet Module Configuration (pcs) | 4 × 2 | |
| Cabinet Resolution (dot) | 640 × 360 | |
| Cabinet Size (mm) | 600.0 × 337.5 | |
| Cabinet Weight (kg) | ≤3.1 | |
| Cabinet Thickness (mm) | 32 | |
| Cabinet Material | Die-cast Aluminum | |
| Pixel Density (dot/m²) | 1,137,778 | |
| Cabinet Flatness (mm) | ≤0.1 | |
| Calibrated Brightness (nit) | 600 | |
| Refresh Rate | ≥3840Hz | |
| Color Temperature (K) |
9000 |
|
| Brightness Uniformity | ≥97% | |
| Horizontal Viewing Angle (°) | ≥160 | |
| Color Gamut | NTSC 110% | |
| Contrast Ratio | ≥10000:1 | |
| Driving Method |
1/54 |
|
| Package Mode | COB | |
|
AC Operating Voltage (V) |
100-240 | |
